GI flush switch and socket boxes
Galvanised steel back boxes for recessed switches and sockets, in 1-, 2-, 3- and 4-gang sizes.
Ask our sales team for the price.
Back boxes made from 1.0 mm galvanised steel (zinc coating approx. 40 g/m²) for recessed switches, socket outlets and compatible wiring accessories. Each box is 47 mm deep for generous wiring space, has 20 mm and 25 mm knockouts for conduit entry, M3.5 threaded fixing lugs (fixed and adjustable) and an integrated earth terminal. Made to the BS 4662 dimensional format for masonry, brick and suitable dry walls.
Specifications
- Family
- Wiring accessories
- Series
- GI Flush Box Series
- Material
- Galvanised sheet steel
- Sheet thickness
- 1.0 mm
- Zinc coating mass
- Approx. 40 g/m² (standard)

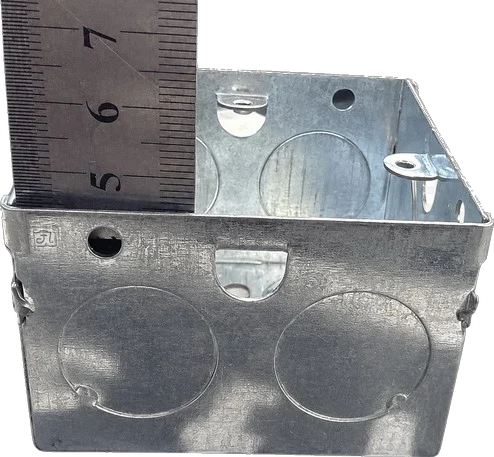

- Box depth
- 47 mm
- Knockouts
- 20 mm and 25 mm
- Fixing lugs
- M3.5 threaded; fixed and adjustable
- Earthing
- Integrated earth terminal
- Mounting
- Flush / recessed wall mounting
- Applications
- Masonry, brick and suitable dry walls
- Compatibility
- BS 4662 dimensional format

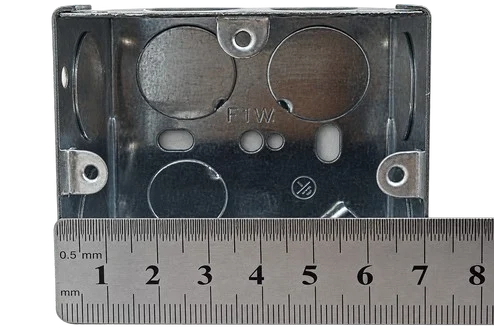

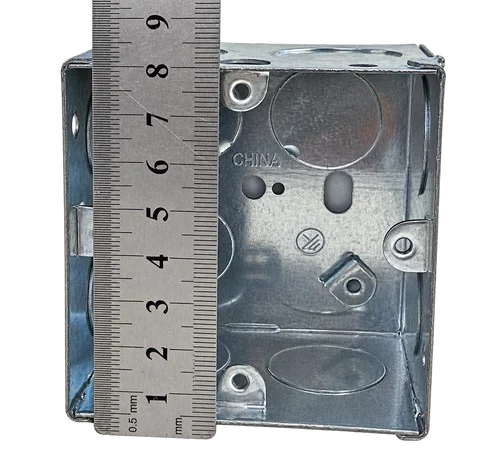

- 1-gang
- 75 × 75 mm, 47 mm deep

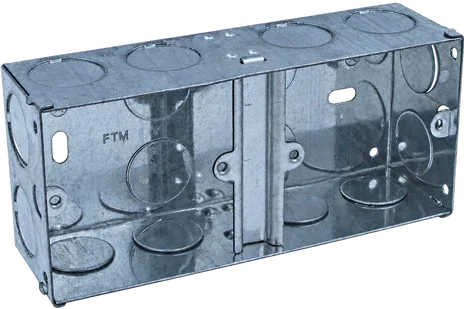

- 2-gang
- 135 × 75 mm, 47 mm deep

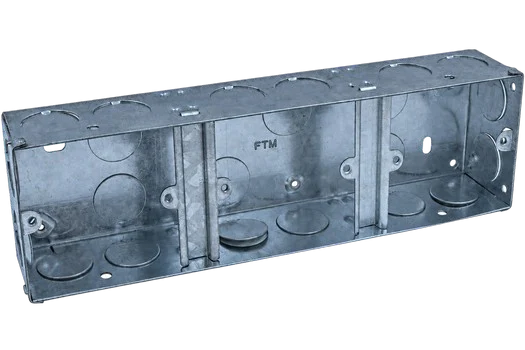

- 3-gang
- 205 × 75 mm, 47 mm deep
- 4-gang
- 275 × 75 mm, 47 mm deep
