New arrival
JM2L-125-100A
JM2L-125 100A moulded case circuit breaker, 3-pole
3-pole MCCB, 100A, 25kA breaking capacity at AC400V.
Warranty: 50 years
Ask our sales team for the price.

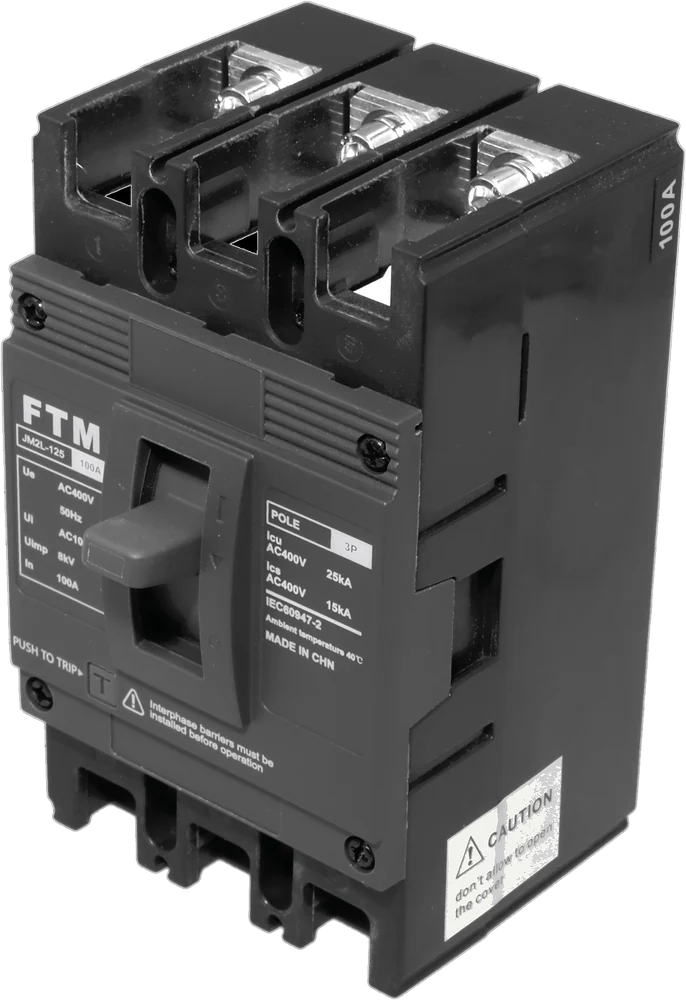

A 3-pole moulded case circuit breaker in the JM2L-125 frame, rated 100A. The front has a push-to-trip test button, and interphase barriers must be fitted before use. Every rating listed is printed on the breaker label.
Specifications
- Product code
- JM2L-125-100A
- Family
- Circuit breakers
- Applications
- Distribution boards, buildings, industry
- Frame
- JM2L-125
- Rated current (In)
- 100A
- Poles
- 3P
- Rated operational voltage (Ue)
- AC400V, 50Hz
- Rated insulation voltage (Ui)
- AC1000V
- Impulse withstand voltage (Uimp)
- 8kV
- Ultimate breaking capacity (Icu)
- 25kA at AC400V
- Service breaking capacity (Ics)
- 15kA at AC400V
- Standard on label
- IEC 60947-2
- Ambient temperature
- 40°C
Ask about this product
For shops, dealers, contractors and homeowners. Tell us what you need and how to reach you.
