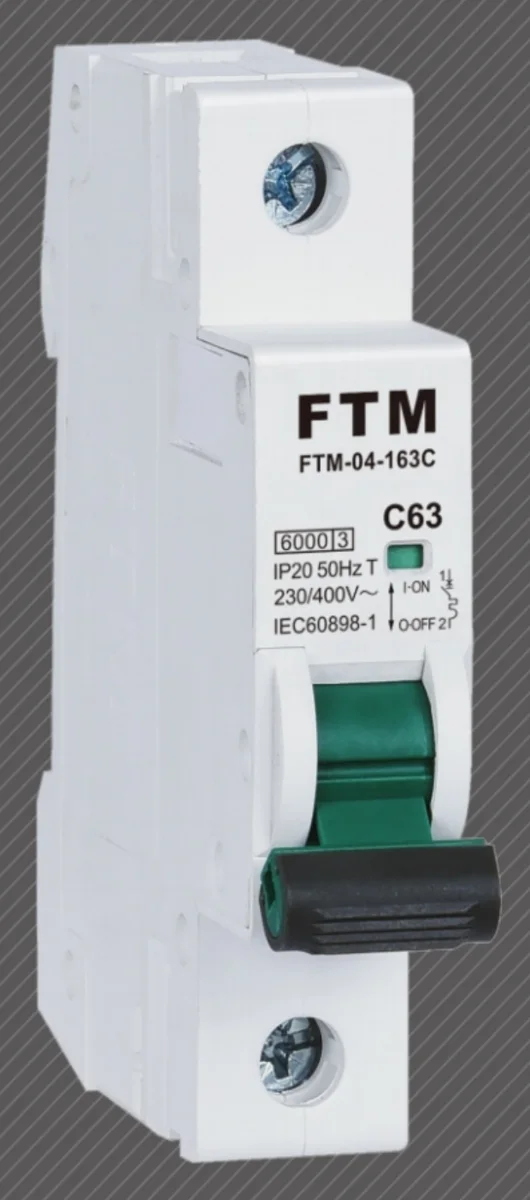

FTM-04 series miniature circuit breaker
C-curve MCBs from 6A to 125A in 1, 2 and 3 poles, 6kA, plus 30mA RCBOs.
Warranty: 50 years
Ask our sales team for the price.

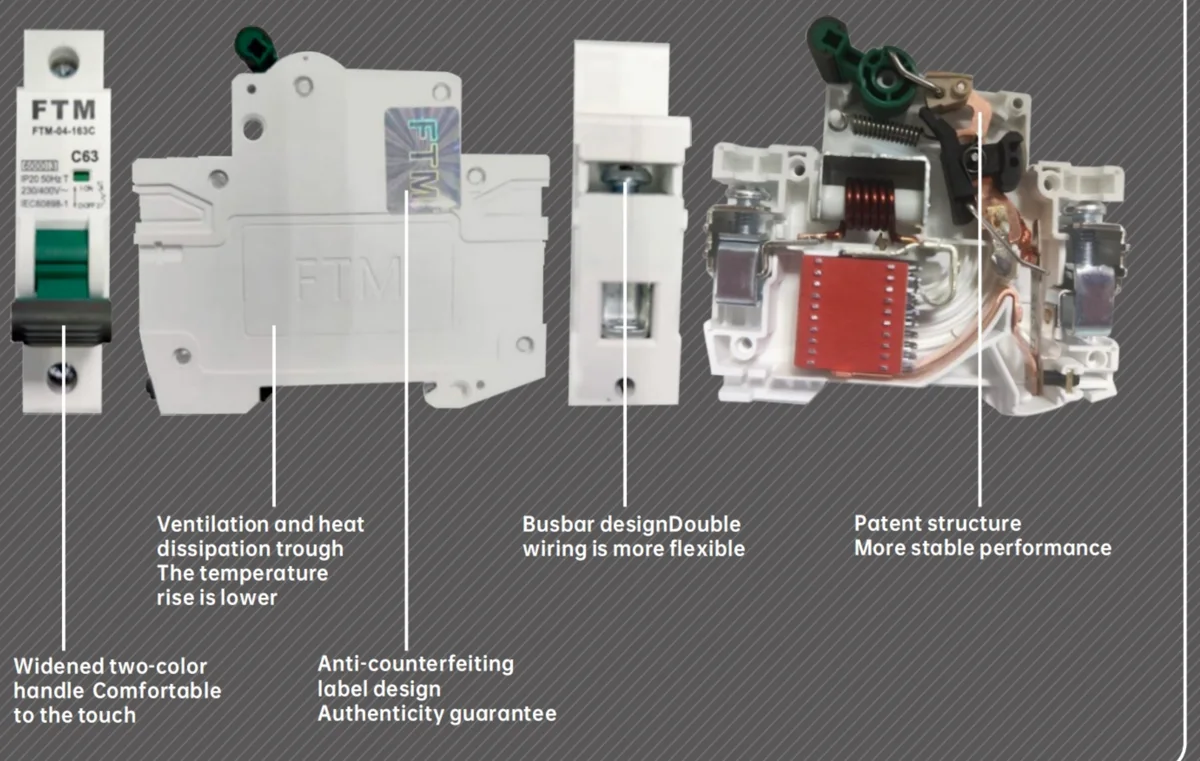

C-curve miniature circuit breakers with a widened two-colour handle, an indicator window that still shows the contact state when the switch is locked, dual-side ventilation grooves for lower temperature rise and an anti-counterfeit label. Inside: an all-copper release, a magnetic coil with yoke for stable short-circuit protection, copper wiring plates that take a busbar and a wire together, 10 arc-extinguishing plates and a pure-white PA66 shell. Mechanical life 20,000 operations and electrical life 10,000 (the standard asks for 4,000).
Specifications
- Family
- Circuit breakers
- Applications
- Homes, buildings, commercial and industrial distribution boards
- Rated current
- 6, 10, 16, 20, 25, 32, 40, 63, 100, 125A
- Rated voltage
- 1P 230/400V~ · 2P, 3P 400V~
- Tripping curve
- C
- Breaking capacity
- 6kA
- Mechanical / electrical life
- 20,000 / 10,000
- Protection
- IP20
- Max wire size
- 25 mm²
- Standard
- GB/T 10963.1 · IEC 60898-1
- 1P (J65-63)
- FTM04-106C, 110C, 116C, 120C, 125C, 132C, 140C, 163C · 120 pcs/ctn
- 2P (J65-63)
- 10A, 20A, 32A, 40A, 63A · 60 pcs/ctn
- 2P (J65-100)
- FTM04-2100C, FTM-04-2125C · 30 pcs/ctn
- 3P (J65-63)
- 10A, 20A, 32A, 40A, 63A · 40 pcs/ctn
- 3P (J65-100)
- FTM04-3100C, FTM04-3125C · 30 pcs/ctn
- RCBO (J65L-63), 30mA, 6kA
- 1P+N 16, 20, 25, 63A · 2P 63A · 3P 63A
- Wire size guide
- 6A 1 mm² · 10A 1.5 · 16-20A 2.5 · 25A 4 · 32-40A 6 · 63A 10-16 · 100A 25 mm²
