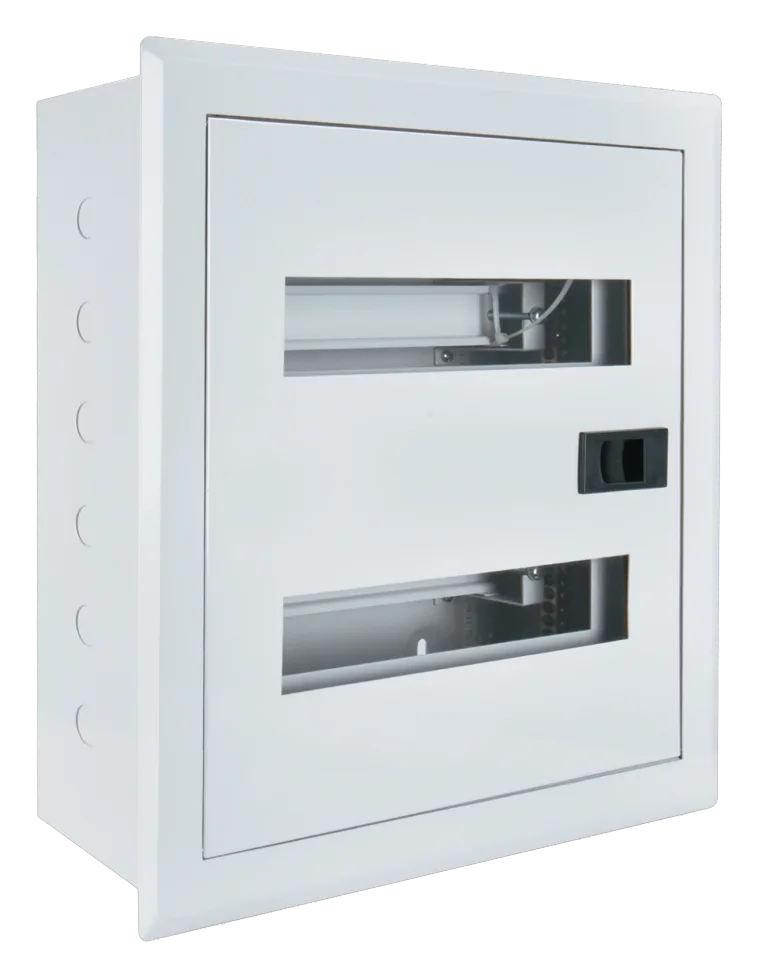

V16 series MCB power distribution box
Flush metal MCB box with viewing windows, 1 to 3 rows of 13 to 18 ways, 100A.
Ask our sales team for the price.
A flush-mounted MCB distribution box with a transparent viewing window in the cover and a movable bus bar. Door, frame and guide rail are 1.0 mm cold-rolled sheet, the base box is 1.2 mm cold-rolled sheet, and the earth/neutral bars are brass. Rated 100A, 230/400V, IP30. Supplied in colour packing.
Specifications
- Family
- Distribution equipment
- Materials
- Metal
- Applications
- Homes and buildings
- Rated current
- 100A
- Rated voltage
- 230/400V~
- Protection
- IP30
- Material
- Door, frame, rail 1.0 mm cold-rolled sheet · base 1.2 mm · E/N bars brass
- V16MCB113
- 1 × 13 ways · 385×303×114 mm
- V16MCB116
- 1 × 16 ways · 470×303×114 mm
- V16MCB118
- 1 × 18 ways · 505×303×114 mm
- V16MCB213
- 2 × 13 ways · 385×408×115 mm
- V16MCB313
- 3 × 13 ways · 385×558×115 mm
